Ethereum, tokens & smart contracts.

Notes on getting started Part 10. Remix/Truffle/TestRPC

Previous notes in case you are just joining us:Part 1. Setting up.
Part 2. Web3.js/node.
Part 3. Solidity.
Part 4. Smart Contracts.
Part 5. Smarter Contracts.
Part 6. Tokens & Inheritance.
Part 7. ERC20 Token Standard.
Part 8. Crowdfunding and ICOs.
Part 9. Dapps & MetaMask.

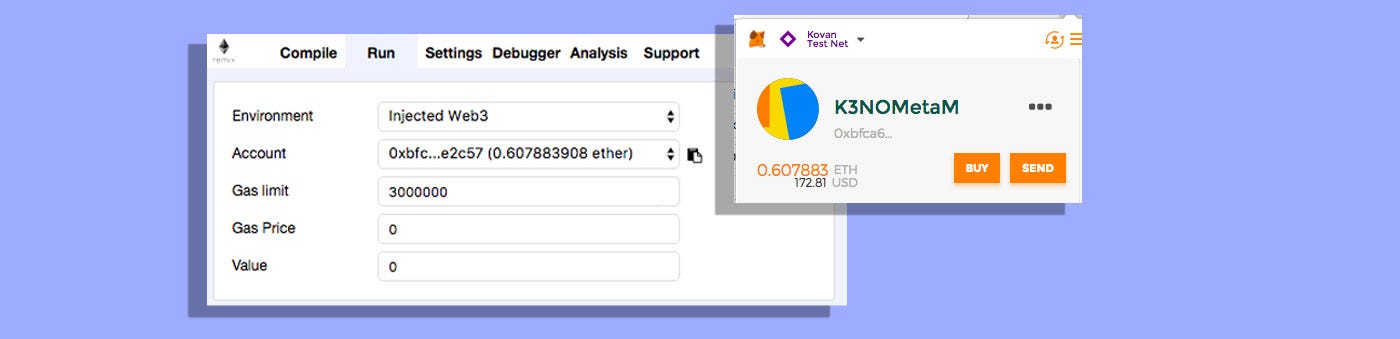

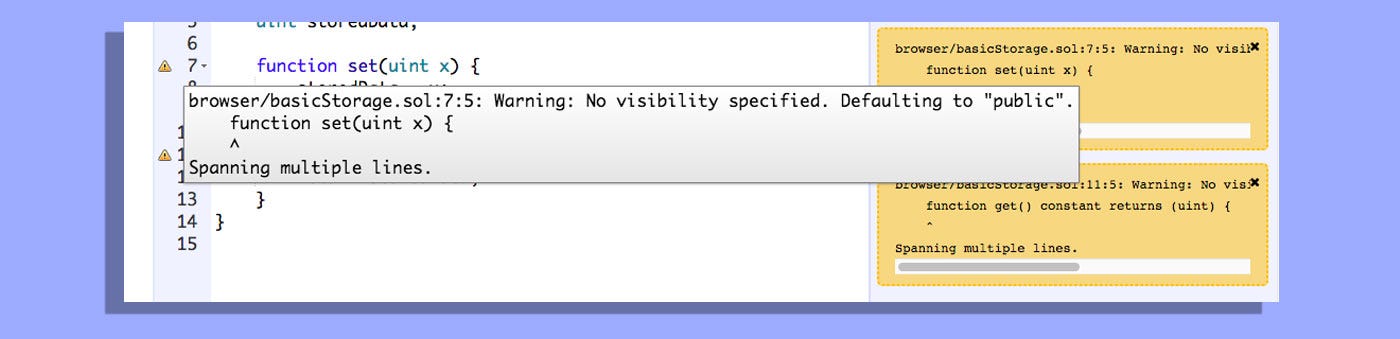

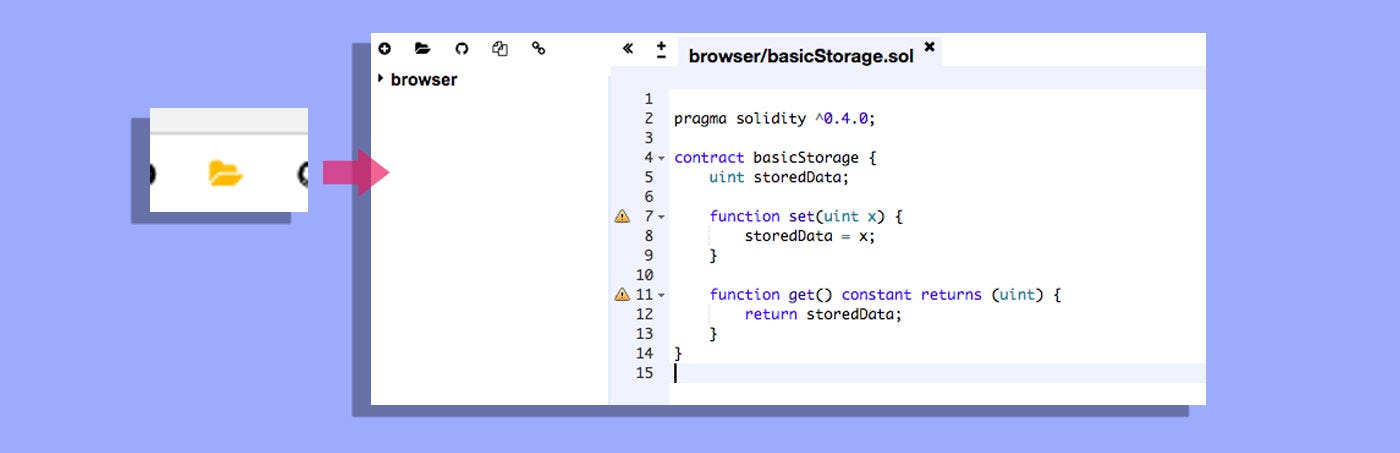

REMIX

Note: Why not start with remix ? A lot of tutorials (including Ethereums ) recommend Remix as a starting point and that might work for some,I found it very confusing from the beginning, so I chose the path in these notes and I am glad I did since I believe working with clients, making your own compiler and interacting with the blockchain in other ways gives you a more robust foundation.
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
If you want to copy the contract address use the small file copy icon, our contracts address is: 0x008b85cf793e9860aa24f2eab1f2008551f59b09
Image for post
Image for post

Transaction Details:

Transactions are simply done by the getter and setter in this example, for instance let’s set x to 10,20,and 30:

Image for post
Image for post

Debug and conquer.

Another useful tool is the debugger. In order to use it you need to switch to the Javascript VM:

Image for post
Image for post
Image for post
Image for post
Note: There seems to be a way of working with remix locally via cloning the repo and using geth as the backend, it is not fully documented or fleshed right now, but if you want to go that route check the remix repo for instructions.

TRUFFLE + TestRPC

Image for post
Image for post

Setting Up :

As is sometimes expected from more complex tooling, there is some setup to take care off before we begin…

Image for post
Image for post

In use :

Let’s say we want to deploy and interact with one of our previous contracts through truffle, let’s pick once more the basicStorage.sol we used for Remix as a minimal example, let’s also clear the folder- file structure to the bare minimum, the result would be:

Image for post
Image for post
Note: There are still a few extra files here that need explaining, contracts is where our contract ( basicStorage.sol ) lives, but there is also the Migrations.sol contract, this contract along with the file 1_initial_migration.js is required for the migration feature to work.
- What is the Migration feature you ask?
The Migration feature allows you to stage your deployments in incremental steps,add specific environmental variables and keep track of successful migrations, in Migrations.sol which is required in 1_initial_migrations.js, some of these features are initialized..In other words scaffolding for truffle's features, look here for an in depth discussion: Demystifying Truffle MigrateThe migrations folder is also where we store our deployment instructions: 2_deploy_contract.js which we'll try now:

Deploying :

In order to deploy we need a deployer…

// File: 2_deploy_contract.jsvar basicStorage = artifacts.require("./basicStorage.sol");module.exports = function(deployer) {
deployer.deploy(basicStorage);
};
Before deploying start TestRPC: $ testrpcAvailable Accounts==================(0) 0x64d37bd909091ecc8f97483065ce69e0e5a9ea57
(1) 0xa646f9b0cf2cdaa5404f02cb4f8fcf0886ce75a2...etc
Listening on localhost:8545
$ truffle migrate
Image for post
Image for post

Interacting with contracts :

To interact with our contract we first need to start Truffles console:

$ truffle console$ .exit // to exit.
$ basicStorage.deployed().then(function(o){console.log(o)});Spews out a ton of information including the ABI,bytecode, methods and address (0xd32463887bfe0139eb03d817d795a03296955a04) in our case.
basicStorage.at("0xd32463887bfe0139eb03d817d795a03296955a04").set.sendTransaction(72,{from:"0x64d37bd909091ecc8f97483065ce69e0e5a9ea57"});
basicStorage.at("0xd32463887bfe0139eb03d817d795a03296955a04").get.call();// Results in :{ [String: '72'] s: 1, e: 1, c: [ 72 ] }

Running Scripts:

To replicate what we just did in the console in script form, we need to create a new .js file ( I am doing so inside a scripts folder to keep things tidy ):

// File: scripts/interactTruffle.jsmodule.exports = function(callback) {var basicStorage = artifacts.require("basicStorage");basicStorage.deployed().then(function(instance) {
contract = instance;
console.log(contract);
})
}// Note: the artifacts line, in Truffles parlance it is a contract abstraction and it encapsulates your contract for use within Truffles framework, the equivalent of instantiating a contract with an ABI and/or Bytecode in web3,for an in depth look and extra features check out truffle-contract ( the abstraction module )
$ truffle exec scripts/interactTruffle.jsNote: You will need to run again truffle migrate if you closed your previous session and change contract & account variables.
...
Spews out a ton of information including the ABI,bytecode, methods and address like before.
module.exports = function(callback) {var account = "0xf8c09220dfc59e74727c9db4d58df8ae120d2e93";
var basicStorage = artifacts.require("basicStorage");
var contractInstance = basicStorage.at("0x27974f214310b7977492396f981a93c930297f81");
contractInstance.set.sendTransaction(10, {
from: account
}).then(function(result) {
console.log(result);
// tx : 0x5d899a8a22b4a1599728c6b3fb772d64492f6a94d78365ef88330fb910f06bed
contractInstance.get.call().then(function(result){
console.log(result);
// { [String: '10'] s: 1, e: 1, c: [ 10 ] }
});
});
}Note we are using the deployed contract Instance at a specific address, also the use of promises for flow.
// File: scripts/102030.jsmodule.exports = function(callback) {var account = "0xc9b3bb2bd6d3ebd4ebf9816052cd84da5c61c116";
var basicStorage = artifacts.require("basicStorage");
var contractInstance = basicStorage.at("0xe32d1865f5e37a20b4b3cf3939cc247a27ff302d");
contractInstance.set.sendTransaction(10, {
from: account
}).then
contractInstance.get.call().then(function(result){
console.log(result);
}).then
contractInstance.set.sendTransaction(20, {
from: account
}).then
contractInstance.get.call().then(function(result){
console.log(result);
}).then
contractInstance.set.sendTransaction(30, {
from: account
}).then
contractInstance.get.call().then(function(result){
console.log(result);
});
}
// String: 10, 20 ,30Note the use of chained promises.

Testing in Truffle

Running scripts is one way of testing your contracts, but more likely you will want to do some unit testing, Truffle allows you to do so in a number of ways:

// File: test/basicStorage.js var basicStorage = artifacts.require("basicStorage");var song = '';
// var song = 'la la la';
contract('basicStorage', function() {
it("should sing you a song !", function() {
assert(song !== '', 'I have no song');
})
});
- - - - - - - - - - - - To run ( on your Truffle folder ) :$ truffle test
Image for post
Image for post
var basicStorage = artifacts.require("basicStorage");
var testValue = 10;
contract('basicStorage', function(accounts) {it("set & get methods should work", function() {
return basicStorage.deployed().then(function(instance) {
return instance.set.sendTransaction(testValue, {
from: accounts[0]
}).then(function() {
return instance.get.call().then(function(result) {
assert(result == testValue, 'get value is not set value');
});
});
});
});
});

✓ set & get methods should work (64ms)
1 passing (83ms)
// File : TestbasicStorage.solpragma solidity ^0.4.2;import "truffle/Assert.sol";
import "truffle/DeployedAddresses.sol";
import "../contracts/basicStorage.sol";
contract TestbasicStorage {basicStorage bs = new basicStorage();function testInitialBalance() {
Assert.balanceIsZero(bs, 'Assert failed');
}
}
Results:
TestbasicStoragetestInitialBalance (60ms)Contract: basicStorage✓ set & get methods should work (62ms)2 passing (583ms)

Look how far you’ve come !

  • Notes Part 1 : Setting up : Getting a wallet/client , connecting to a test Ethereum blockchain and getting some test ether.
  • Notes Part 2: web3.js/node : Interacting with the blockchain through web3.js and node for more convenience and ease of development.
  • Notes Part 3: Solidity : Installing solidity (Ethereums contract writing language ) , Creating a very basic contract, compiling it, deploying it to the blockchain ( the test one) and interacting with it.
  • Notes Part 4: Smart Contracts : We modified our simple contract so we could store and retrieve information (making it smart), in the process we also covered how to watch the blockchain and contracts and finally we took a look at gas and how to estimate it.
  • Notes Part 5: Smarter Contracts: In order to allow contracts more complex behavior (make them smarter) , we need to delve a bit deeper into contract creation via constructors and a few more complex types which we will use in making a token contract.
  • Notes Part 6: Tokens & Inheritance : We made our first Token and interacted with it by transferring some of it from one account to another, we also briefly covered inheritance which is used in more complex contracts.
  • Notes Part 7: ERC20 Token Standard : We made and deployed an erc20 token which can be considered the parting standard for working sub currencies. We examined the code and talked about transfers in between tokens.
  • Notes Part 8: Crowdfunding and ICOs : We explored the subject of crowdfunding via smart contracts in the form of ICOs and the exchange of ether for tokens, we made contracts that can receive ether, collect ether and can be used for exchanging ether and creating an unlimited supply of tokens.
  • Notes Part 9: Dapps & MetaMask : We looked into what a Dapp is and where we are in terms of development ( very early), we then introduced MetaMask which helps make Dapps accessible in the browser , we looked at various ways to interact with MetaMask via Javascript and we integrated them into a fully fledged test Dapp that uses our previously made token smart contract, we also touched on the future of Dapps and server implementations.
  • Notes part 10: Remix/Truffle/TestRPC (This post): A look into Ethereums current tooling ecosystem, Remix, which allows you to quickly validate contracts online, testRPC which recreates an offline blockchain in your computer, and Truffle, which has a bit of a learning curve in exchange for complex testing and deploying options.
Image for post
Image for post
✨✨  Now a Book !  ✨✨If you are looking for an introduction to Ethereum, Solidity and Smart Contracts these notes were edited and revised into a convenient book !Available in ebook and paperback:https://www.amazon.com/dp/B078CQ8L7VGet it ! 🙏 😊
